If you find opening and closing your front gate is a hassle, then the Lockmaster Automatic Swing Gate Opener is just the thing you need. Designed to work with gates of up to 5.5m wide and each weighing 400kg, the automatic swing gate opener is operated by a powerful 24V 50W DC motor that runs off power from the mains. In essence, there is ample energy to work the gates in the event of any power outage. A manual release key is also included. Not least, the swing arms are made of high quality aluminium and designed for heavy duty performance as well. All components are housed in a weatherproof control box and two remote controls are provided that operate within a 30m range. There is also a stop and reverse mode with the controls. All necessary hardware for installation and an easy-to-follow set up manual and DVD are supplied together with your purchase.
Note:
It is recommended that this model be connected to the mains with the solar kit acting as backup.
Features
Two swing arms for use with double gates
Gates up to 5.5m in width and 400kg in weight per arm

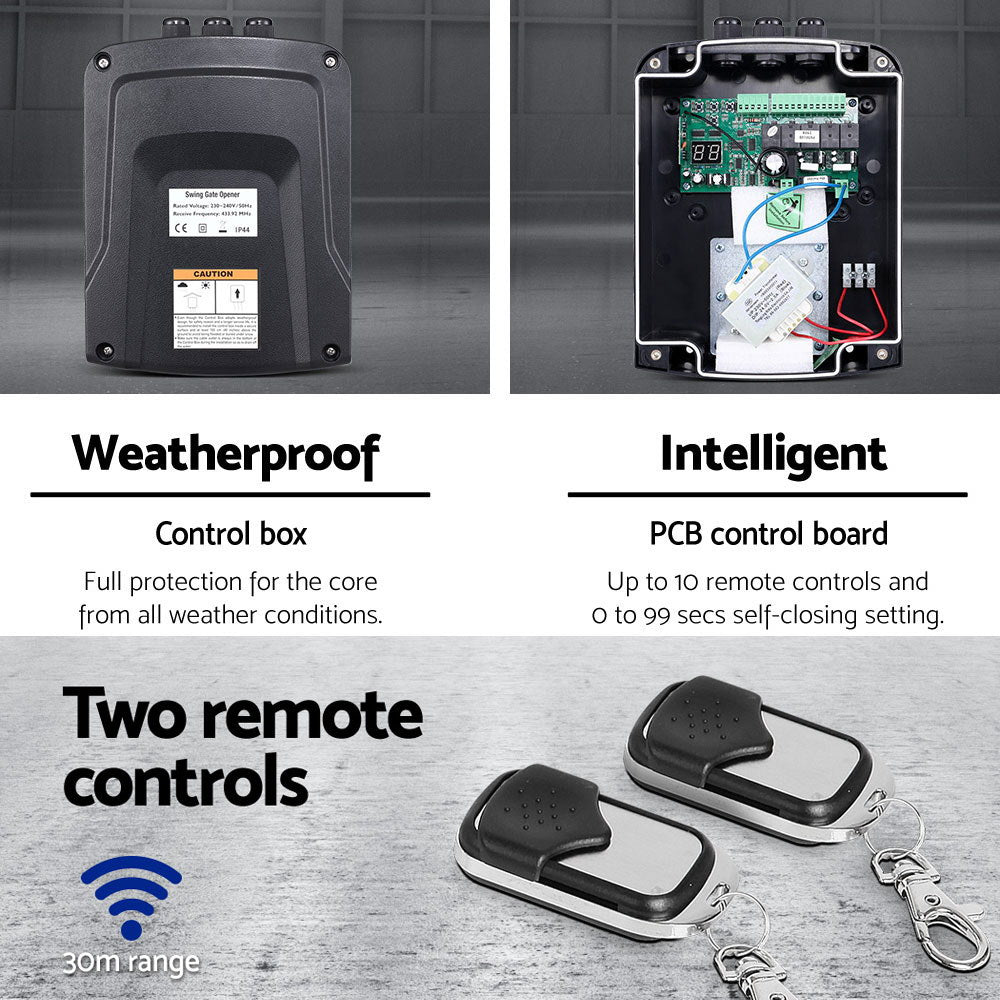

Waterproof and dustproof control box
Low power consumption
24V low voltage system

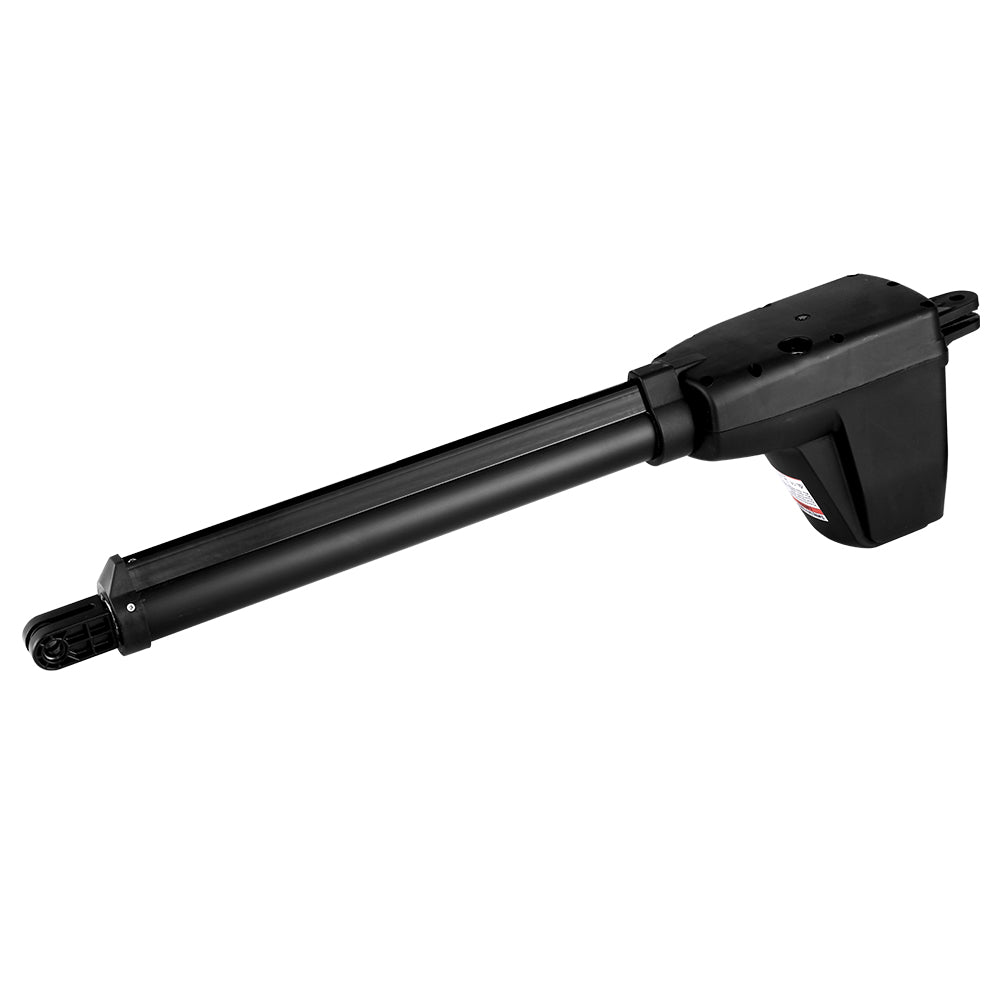

High-quality aluminium swing arm
Stop and reverse mode for obstructions
2 remote controls w/ 30m operation range

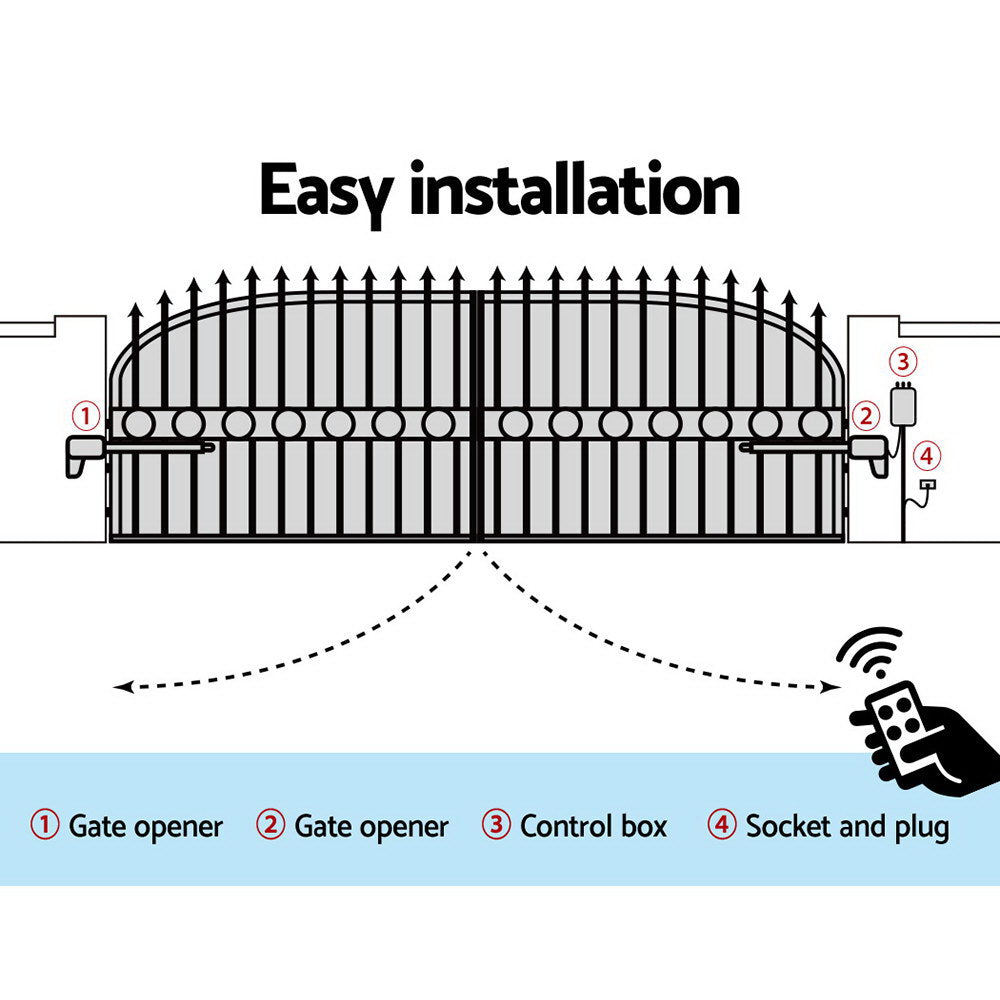

Installation hardware
Specifications:

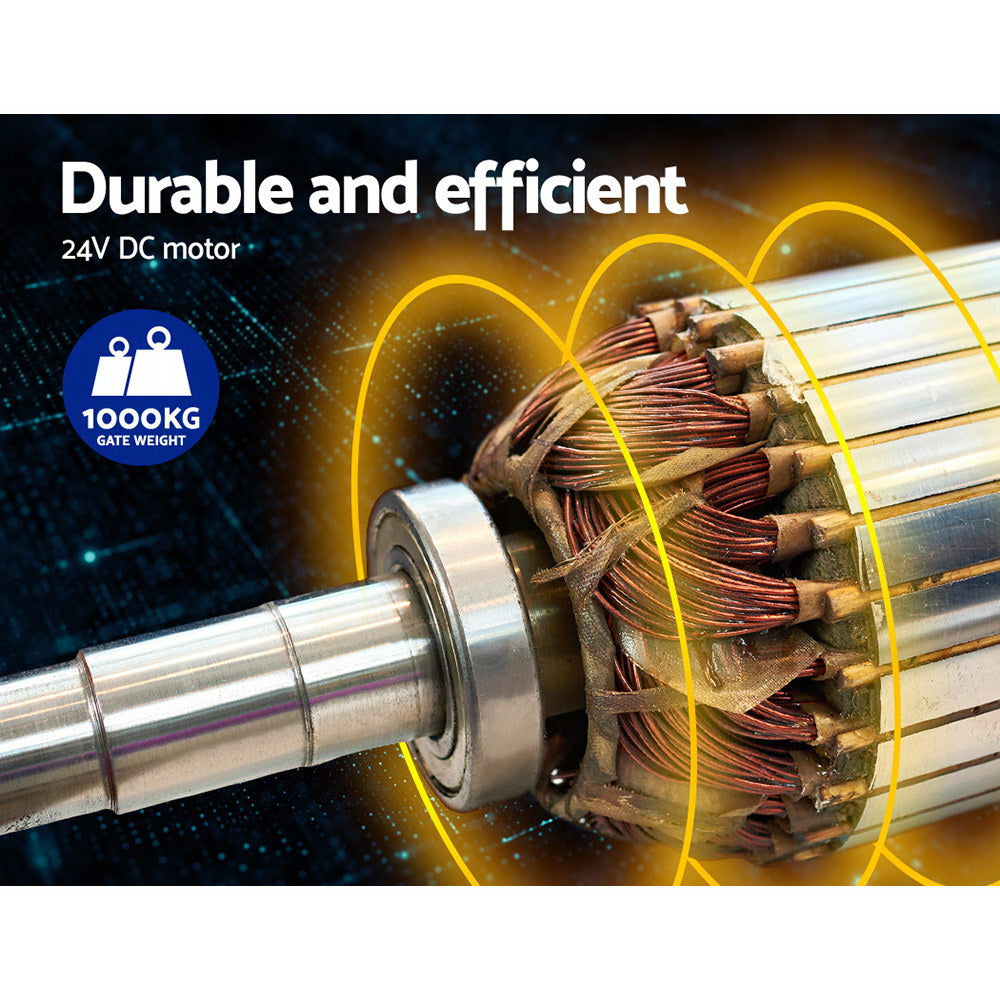

Motor Voltage: DC 24V
Input: 230V/50Hz or 120V/60Hz
Power: 50W/arm
Gate weight: 400kg per arm)
Gate width: 5.5m (per arm)
Current: 3A
Actuator speed: 16mm/s

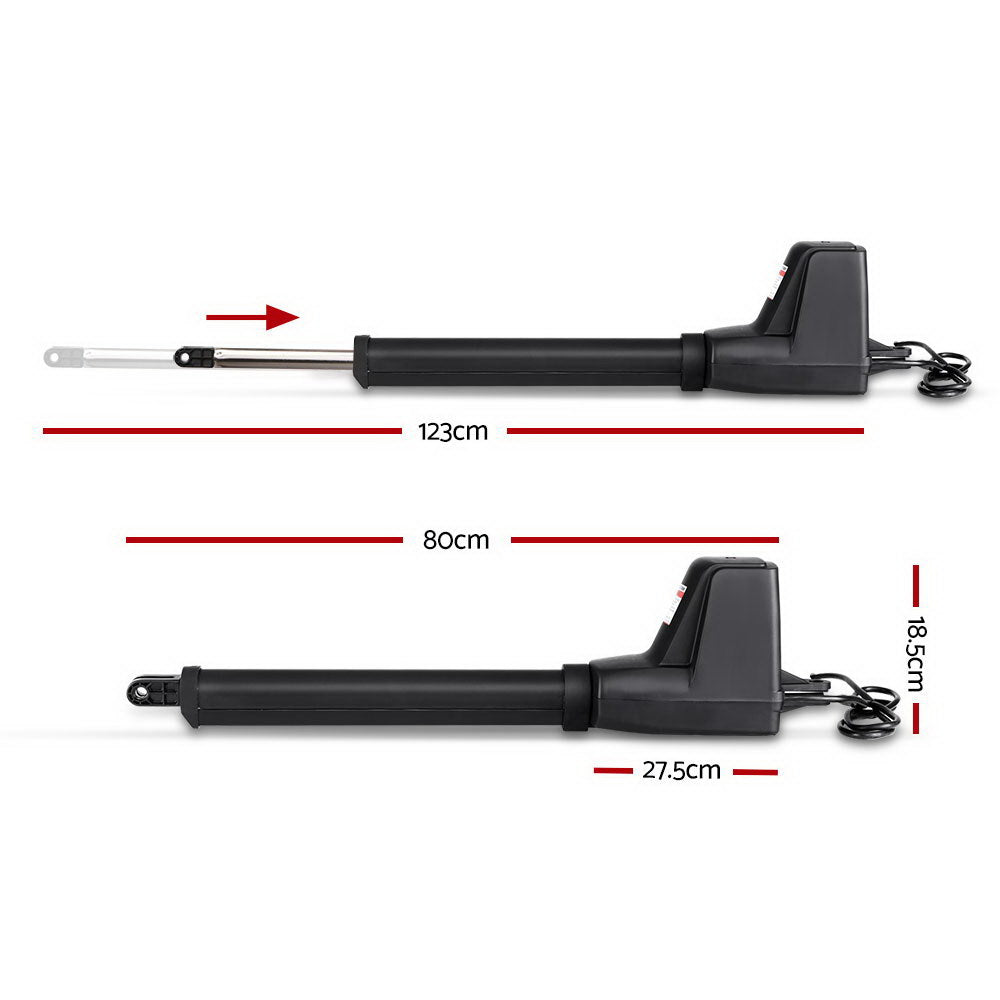

Actuator travel: 385mm
Protection class: IP44
Power supply: Electric
Assembly Required: Yes
Remote control battery: Alkaline zinc manganese battery 12V 27A
Please note: This item comes in 1 package

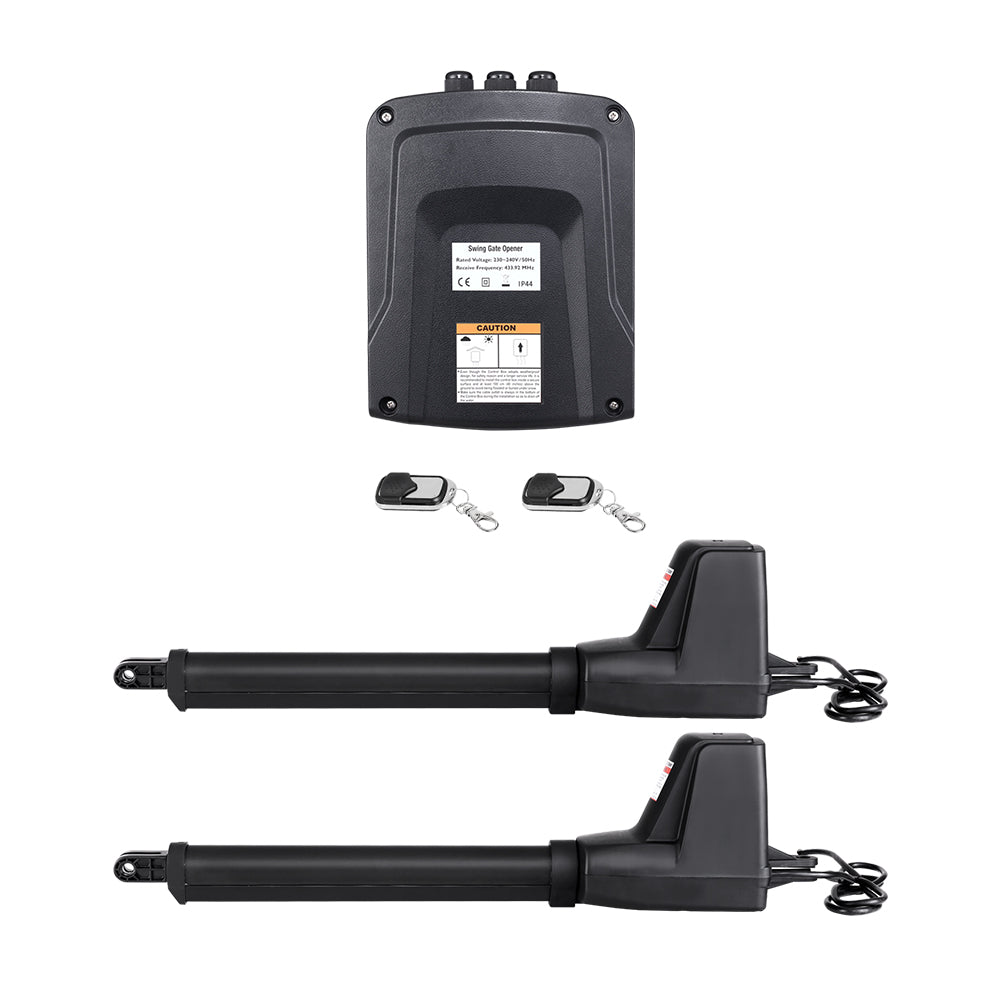

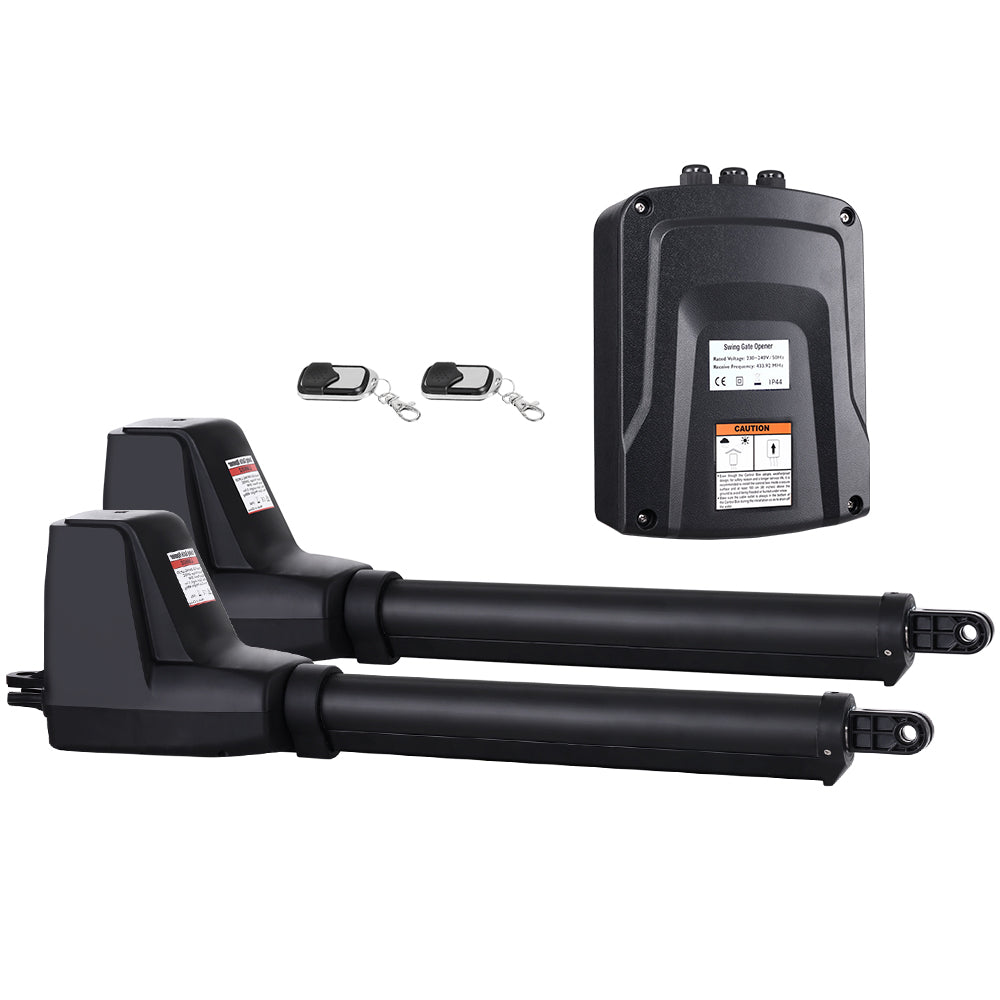

Package Content
(1) Gate Opener arm x 2
(2) Control Box x 1
(3) User Manual x 1
(4) Remote Control x 2
(5) Installation Accessories x 1
This product comes with 1 year warranty.
